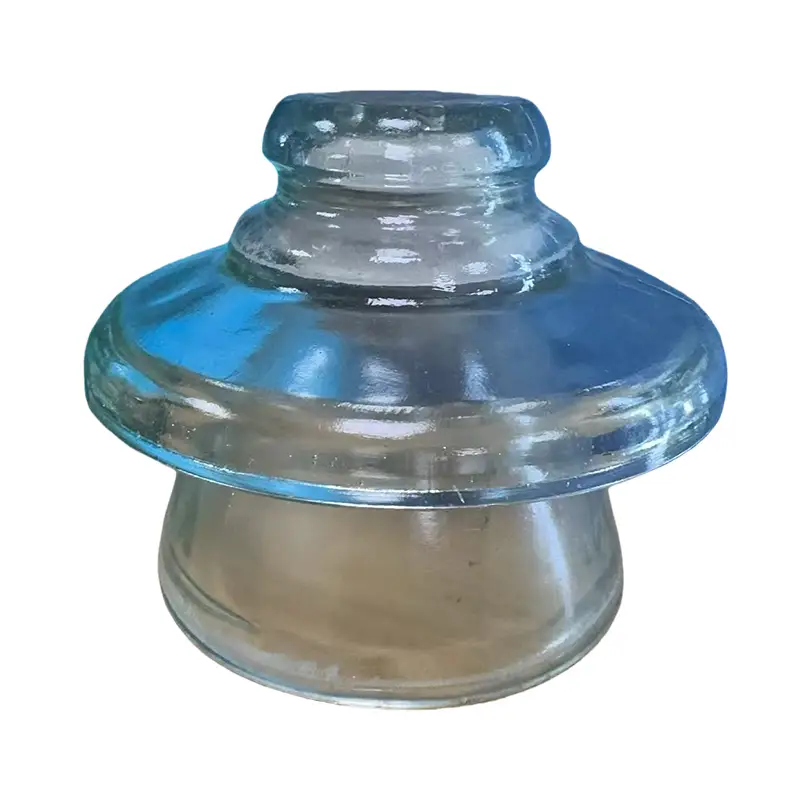

Pin Type Glass Insulator PR3
VHT 22T Pin Glass Insulator – Engineered for Reliability in Modern Power Distribution
When it comes to overhead power distribution systems, performance, safety, and longevity are non-negotiable. That's why YIWU SASUN ELECTRICAL CO., LTD. proudly presents the VHT 22T Pin Glass Insulator—a high-strength, IEC-certified solution designed to meet the rigorous demands of today's electrical infrastructure across diverse global environments.
Key technical specifications of the VHT 22T include
● Creepage Distance: 415 mm (tested up to 425 mm), ensuring superior insulation performance even in polluted, humid, or coastal conditions.
● Mechanical Breaking Load: 14 kN, providing robust mechanical support for conductors under heavy loads, wind, or ice accumulation.
● Height: 168.5 mm – optimized for standard pole configurations and efficient line design.
● Pin Type: TR25 threaded steel pin for secure, standardized mounting and compatibility with common hardware.
● Compliance: Fully certified to IEC 60383-1, the international standard for insulator performance, safety, and reliability.
These features make the VHT 22T not just a component—but a critical safeguard for grid stability.
Ideal for Diverse Applications Worldwide
The VHT 22T Pin Glass Insulator is engineered for medium-voltage overhead distribution lines, typically used in 11 kV to 33 kV systems. Its robust design and material properties make it especially suitable for:
● Urban and rural power networks requiring long-term reliability with minimal maintenance
● Industrial zones and mining operations where pollution and mechanical stress challenge insulation integrity
● Coastal regions exposed to salt fog, where high creepage distance prevents flashovers
● Arid or dusty climates where contamination buildup can compromise electrical performance
● Infrastructure projects in emerging markets, including Africa, Oceania, and Southeast Asia
● Backed by successful deployments in New Zealand, South Africa, Cameroon, and beyond, the VHT 22T has proven its adaptability to extreme temperatures, high humidity, dust storms, and corrosive atmospheres.
Why Choose Glass? Why Choose VHT 22T?
Glass insulators like the VHT 22T offer distinct advantages over other materials:
Backed by YIWU SASUN's Global Expertise
● As a trusted exporter with deep experience in international markets, YIWU SASUN ELECTRICAL CO., LTD. combines precision manufacturing with customer-focused service. Every VHT 22T unit undergoes strict quality control—from raw material selection to final testing—to guarantee compliance and consistency.
● We also support customization options, including tailored packaging, labeling, or minor design adjustments to meet regional standards or project-specific requirements. Samples are available for evaluation, and our technical team provides full support for integration into your distribution systems.
● Each unit is securely packaged in a 30 × 36 × 26 cm carton, with a gross weight of 6.0 kg, ensuring safe transport and easy on-site handling.
Power Infrastructure You Can Trust
● In an era where grid resilience and sustainability matter more than ever, the VHT 22T Pin Glass Insulator stands out as a smart, future-ready choice for utilities, contractors, and project developers worldwide.
● Choose performance. Choose reliability. Choose the VHT 22T from YIWU SASUN—where engineering excellence meets global application.
● Contact us today for product specifications, bulk pricing, or sample requests—and take the next step toward building safer, smarter, and more durable power networks.
Technical specification
|
Ultmate Utensile Strenght |
impulse: R (kN) |
10 |
|
tensile:T (kN) |
5 |
|
|
H nominal (max) |
(mm) |
250 |
|
h nominal(min) |
(mm) |
125 |
|
Nominal leakage line(min) |
(mm) |
430 |
|
Withstand voltage |
impulse:(kV) |
125 |
|
power frequency underthe rain (kV) |
50 |
|
|
Salinity of thightness at the test voltage UP= 18kV (g/l) |
14 |
|
