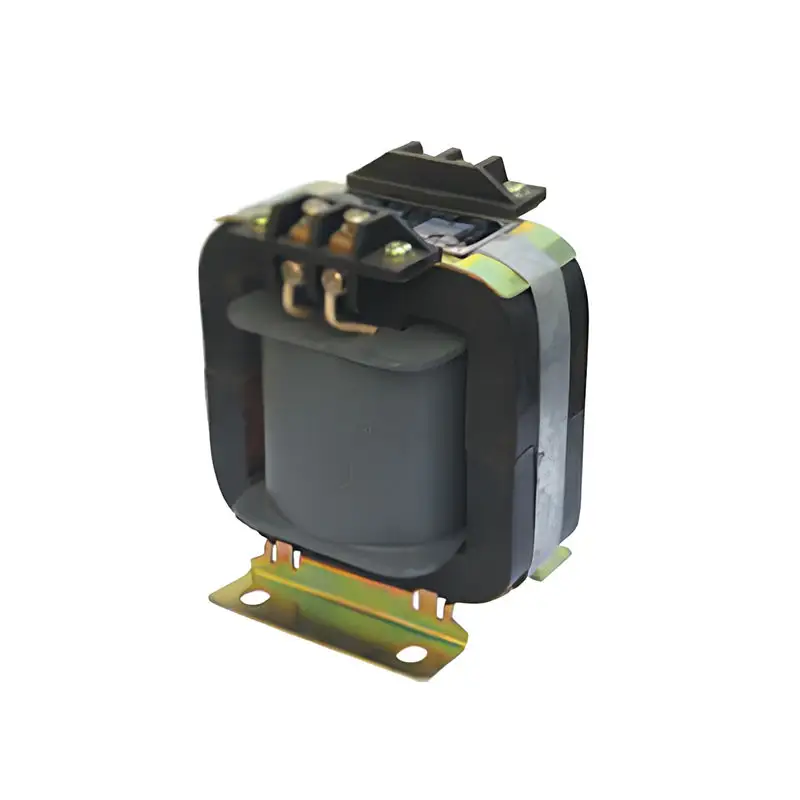

JDG(4)-0.66 Voltage Transformer
The dry type voltage instrument transformers JDG(4)-0.66 are designed for electric power systems of 50/60Hz rated frequency and rated voltage 0.5kV. They are used for indoor mounting.The performances of the products meet standards IEC60044-2 and GB1207-2006.The products are used in metering electric energy,voltage controlling and relay protection applications.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Execution standards
Technical specification
The following table shows standard values for this model.
|
Rated voltage |
Rated output(VA) |
Limit output (VA) |
||
|
0.5 |
1 |
3 |
||
|
200/100 |
15 |
25 |
50 |
100 |
|
380/100 |
||||
|
660/100 |
||||
Structure feature
The iron core is in C'shape,and made of high quality silicon steel sheets.Primary and secondary windings wound around the middle prop.Then outlet terminals are located on the connecting pedestal.Mounting overload is not allowed.
Outline dimension
