| Min. Order: | 2 Piece/Pieces |
|---|---|
| Payment Terms: | L/C, D/P, D/A, T/T |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean |
| Brand Name: | SASUN |
| Place of Origin: | Zhejiang, China (Mainland) | Brand Name: | SASUN | Model Number: | XGN15-12/24 |
| Voltage: | 12KV/24KV | Rated current: | 630A | Ambient temperature: | -15℃ ~ 40℃ |
| Insulation material:: | SF6 gas |
| Packaging Details: | woodcase |
| Delivery Detail: | Depend on the quantity |
Specification:

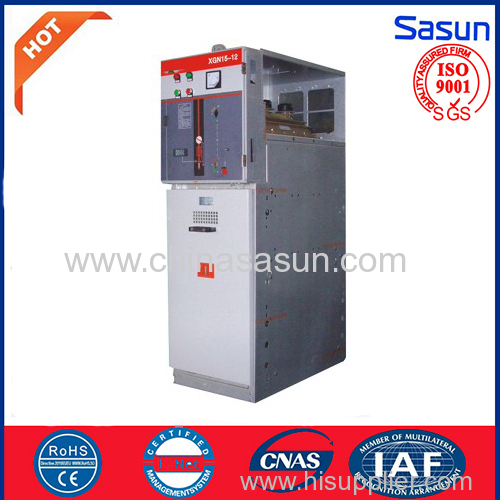

XGN15-12 fully sealed SF6 filled metal switch panel is a new HV apparatus which introduced from aboard and accord to the requirment of rural distribution and city distribution in nation.Main switch,operation mechanism and component used SF6 load breaker switch or FLN36-12D model.Also can use the HAD/US model SF6 circuit breaker or VD4-S model vacuum circuit breaker.Its operation type can be manual or motor.
| items | apparatus | unit | parameter | |||||
| rated voltage | KV | 12 | ||||||
| rated lightning impulse withsttand voltage | ph-ph,ph-ground | KV | 75/125 | |||||
| breaker gap | KV | 85/145 | ||||||
| 1min power frequency withstand voltage | ph-ph,ph-ground | KV | 42/65 | |||||
| breaker gap | KV | 48/79 | ||||||
| rated frequence | HZ | 50/60 | ||||||
| rated current | main busbar | A | 630 | |||||
| branch busbar | A | 1250/630 | ||||||
| rated short time withstand current | main busbar | KA | 20/3s | |||||
| branch busbar | KA | 20/2s | ||||||
| rated peak withstand current | KA | 50 | ||||||
| transformer current | A | 1700/800 | ||||||
| protection class | IP3X | |||||||
| load switch mechanical life | times | 2000 | ||||||
| earth switch mechnical life | times | 2000 | ||||||
| load switch cabinet | deep | mm | 916,940,840 | |||||
| wide | mm | 375,500,750 | ||||||
| high | mm | 16351885,1600,1800 | ||||||
| low pressure chamber | high | mm | 350,450 | |||||
| circuit breaker cabinet | deep | mm | 650,750,800 | |||||
| wide | mm | 916,940,840 | ||||||
| high | mm | |||||||
Category: Ring Main Unit
